kodaa one
Lights and AV.
One command.

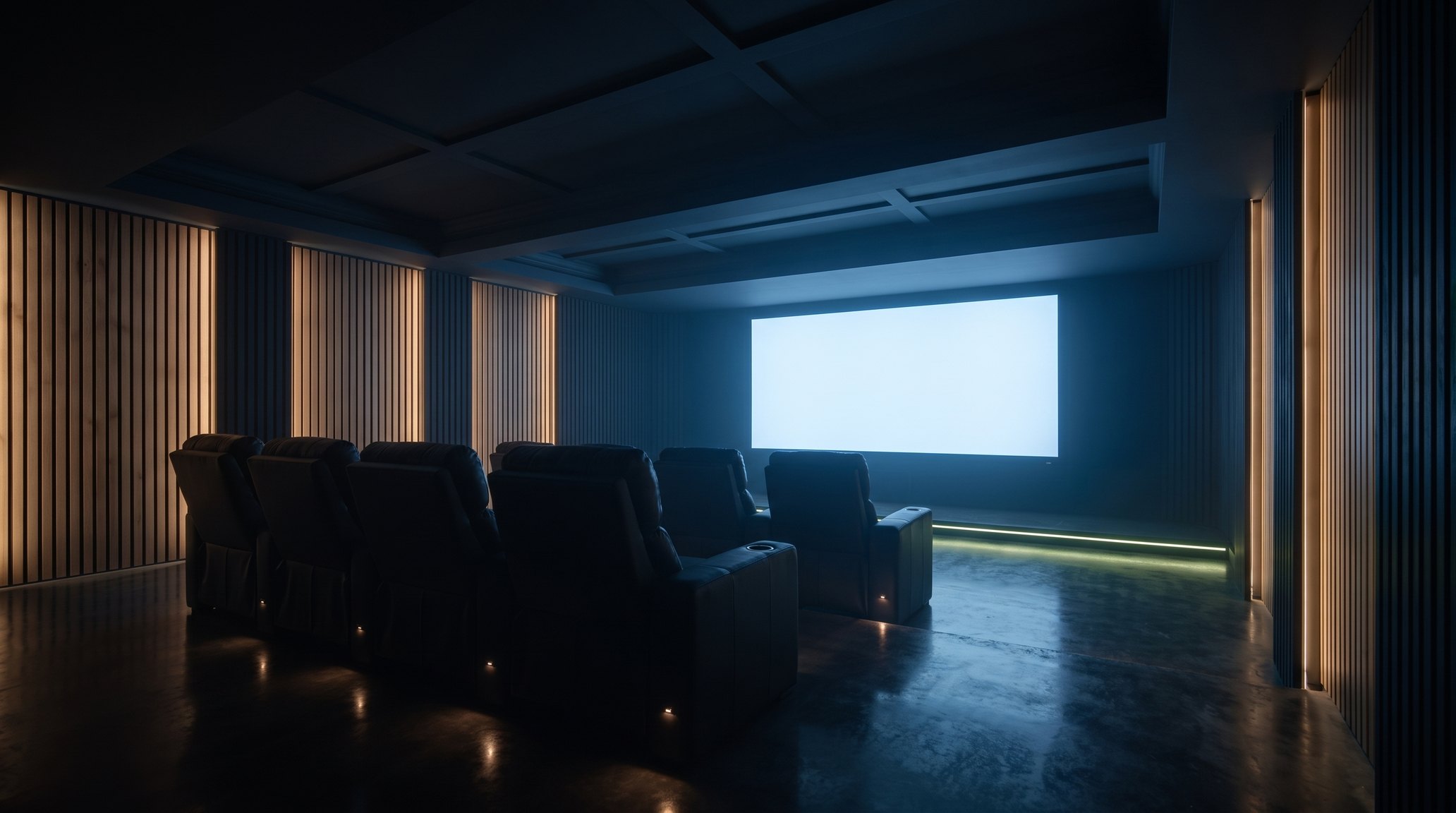

Press Movie on a Control4 keypad. The screen comes up, the Casambi lights fall to a warm 10%, the blinds close. One scene, no second app — and nothing leaves the house.

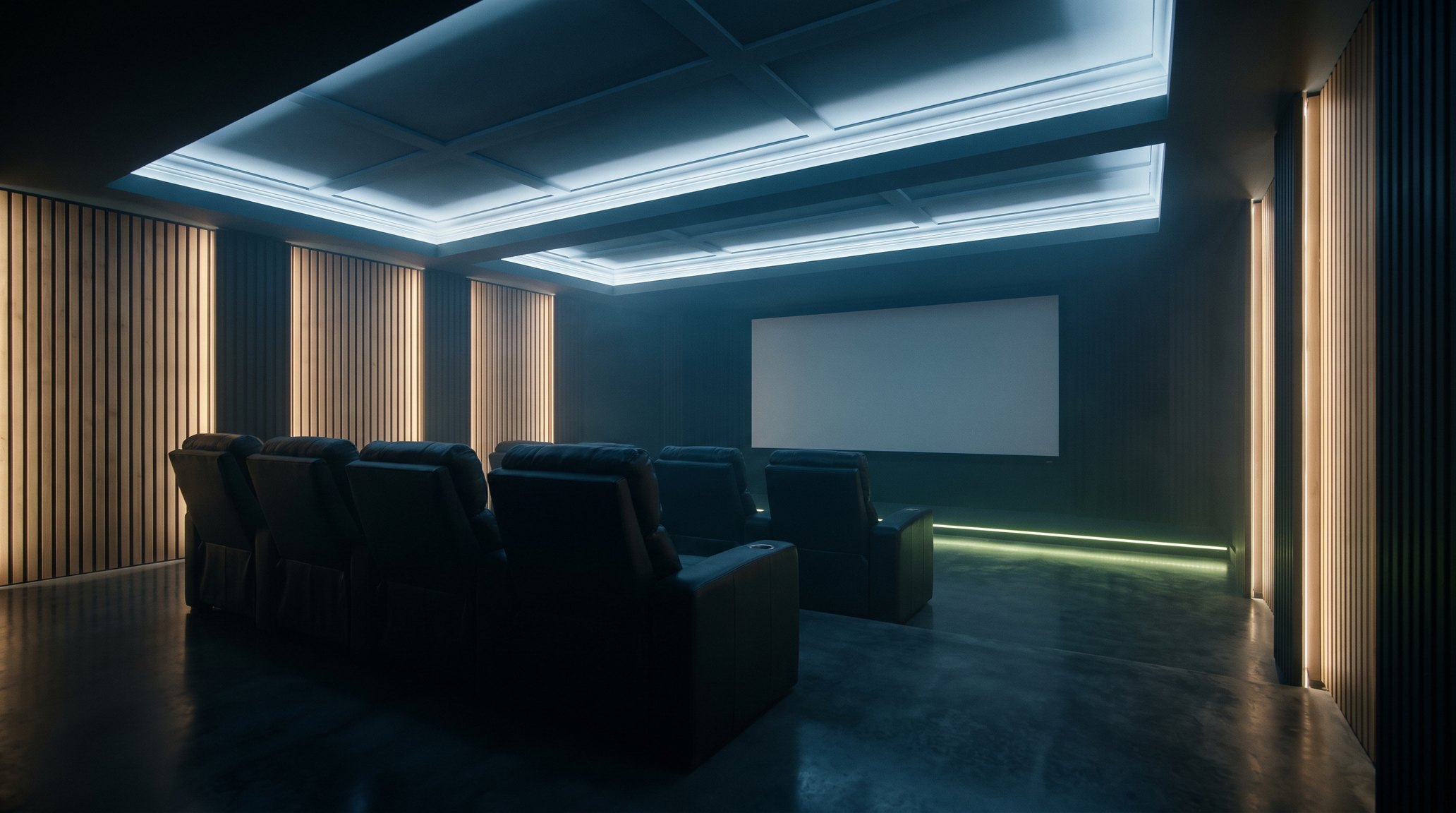

Walk in. Lights up, music low, screen dark.
- Display off
- Cinema audio on standby
- Playlist on · low
- Cove 100% · cool white
- Wall slats 60%
- Blinds open
- AC on · cool
- Ceiling fan low
One system to sell.
One system to live in.
For the integrator
One Composer project
Casambi loads land as Control4 devices — programmed like any load.
Two-way, not assumed
Change it anywhere. Control4 and the Casambi app agree.
No cloud in the path
Every command stays on the LAN. Nothing to expire.
Licensed per project
Pre-provisioned by Kodaa. The dealer sets the gateway and installs.
For the homeowner
One keypad by the door
Lights, blinds, fan, AC, screen — the same buttons.
Scenes that include light
Lighting is part of the scene, not a second app.
Works when the internet doesn't
The house behaves the same on a bad connection or none.
The Casambi app still works
Tuning stays where the lighting designer left it.
Nothing leaves
the house.
Control4 talks to the Casambi lights over your own home network. The internet can drop, the cloud can have a bad day — the keypad by the door still works.
The Casambi cloud is only used for setup and the phone app. It is never in the path of a button press.
Everything as usual.
- Keypad by the door

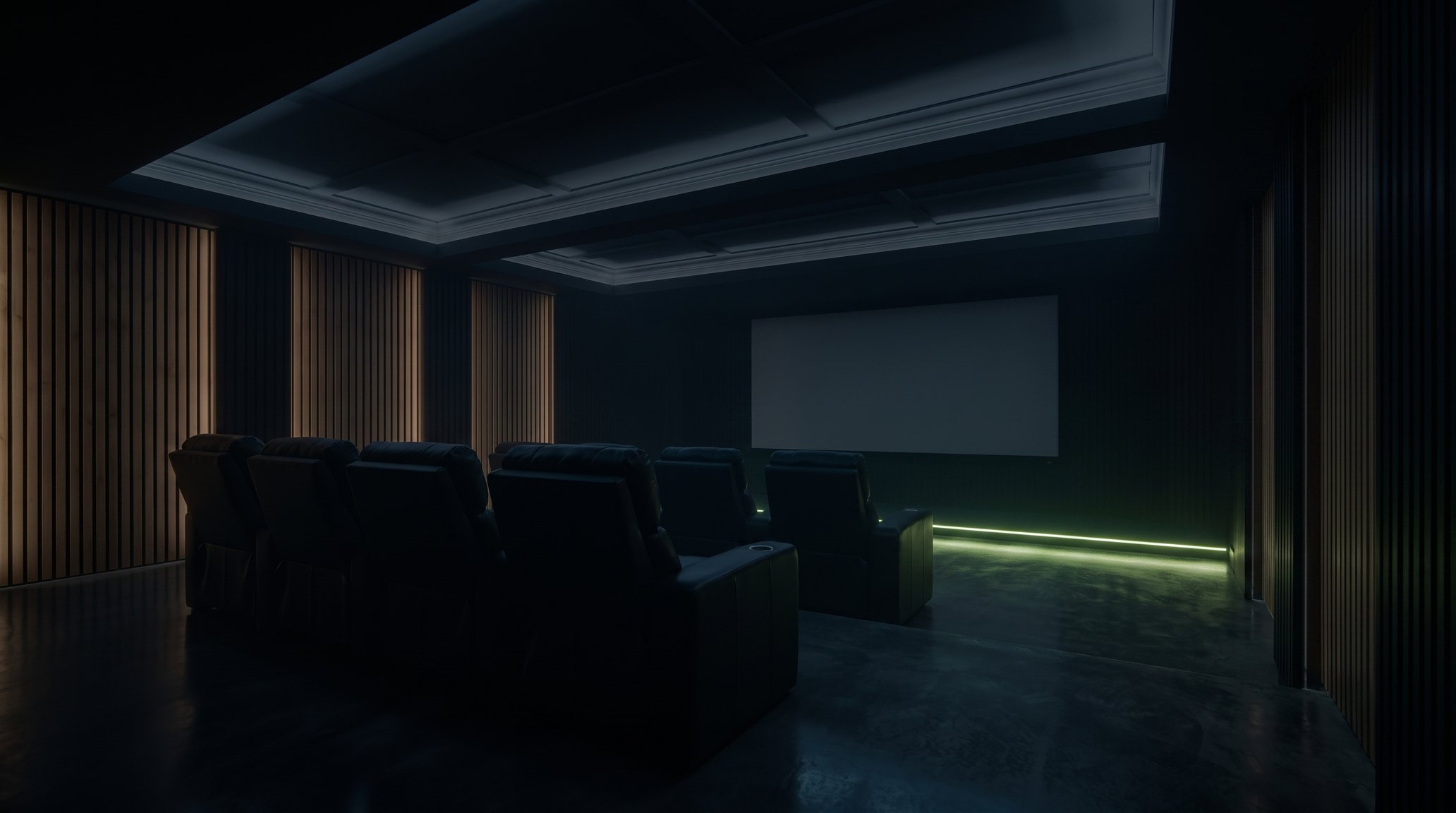

- Movie and Goodnight scenes
- Casambi app on the home Wi-Fi
- Two-way status
The cloud sits beside the path, never in it.
Everything the datasheet says.
Drivers, specifications and what you need on site — for the person doing the Casambi Control4 integration.
01Sixteen drivers. One Hub.16 drivers
The Casambi Hub runs on the controller, discovers every device, group, sensor and keypad the gateway reports, and lists each one ready to link. You add the matching device driver, set it to Linked to Hub and drag it onto the entry — no network address, id or device number to type.
| Kodaa driver | In Control4 | What it controls |
|---|---|---|
| On the controller | ||
| Casambi Connection | Utility | The on-controller service that links the gateway and every driver. One per project. |
| Casambi Hub | Button | Discovers every Casambi device, group, sensor and keypad, and lists each one ready to link. |
| Casambi DALI Hub | Button | Discovers DALI lights per Casambi unit and lists each one for drag-and-drop linking. |
| Lighting | ||
| Casambi Dimmer | Light | On/off and brightness for one luminaire, with an installer-set fade. |
| Casambi Tunable White | Light | Brightness plus colour temperature; per-fixture Kelvin endpoints entered by hand. |
| Casambi RGB | Light | Brightness and full colour for RGB fixtures. |
| Casambi RGBW | Light | Brightness and full colour with a real white channel. |
| Casambi RGBCW | Light | Brightness, full colour and tunable white, switching between colour and white modes. |
| Casambi DALI Light | Light | A single DALI light linked by drag-and-drop to a DALI Hub entry. |
| Devices and appliances | ||
| Casambi Curtain | Shade | Open, close and stop for one motor. |
| Casambi Fan | Fan | Off, Speed 1–7 and Full via a Casambi element. |
| Casambi IR Blaster | 8 buttons | Up to eight blaster buttons as toggle or send tiles. Codes are learned in the Casambi app. |
| Casambi AC | Thermostat | Power, mode, fan speed and a single setpoint for an AC on a Casambi Elements controller. Ships with control disabled until the appliance map is confirmed. |
| Casambi Keypad | Button events | Casambi wall-switch / coupler presses as Control4 Programming events and variables. |
| Groups and sensors | ||
| Casambi Group | Light | A Casambi group as a dimmable zone: read and write group level. Dimmable only. |
| Casambi Sensor | Sensor | Read-only PIR/lux, air-quality (temp/humidity/pressure/aqi/co2) or people-count data, auto-typed from the gateway. |
02Technical specifications12 rows
| Platform | Control4 DriverWorks drivers in Composer Pro. Each device appears as the matching Control4 type — light, shade, fan, thermostat or button |
|---|---|
| Control4 OS | Targets Control4 OS 3.x; drivers declare OS 3.3.0 as the minimum |
| Model | Hub drag-and-drop. The Hub runs on the controller, discovers every device and lists it; device drivers link by dragging them onto the discovered entry |
| Casambi gateway | Lithernet Casambi gateway on the local network. DALI features need a recent gateway firmware; verify against the Lithernet changelog |
| Network | Local LAN only. No cloud in the Control4-to-gateway path; the linked drivers make no web or URL calls |
| Addressing | Supports the full Casambi device and group range. Groups appear once their ranges are enabled on the gateway |
| Discovery | Passive. The gateway reports everything on its own refresh cycle; the Hub creates one entry per discovered device, group, sensor and keypad |
| Feedback | Two-way. Control4-initiated changes show at once; changes made outside Control4 follow the gateway's reporting cycle, up to about a minute |
| Sensors | Read-only. Standard (PIR/lux), AirQuality (temperature/humidity/pressure/aqi/co2) or PeopleCount, auto-typed from the gateway |
| AC | Single setpoint, power, mode and fan speed via a Casambi Elements controller. Control ships disabled; the element map is confirmed per appliance before it is enabled |
| DALI | The DALI Hub discovers DALI lights per Casambi unit for drag-and-drop linking; needs a recent gateway firmware |
| Licensing | Licensed per project and non-transferable. Activated per project, or pre-provisioned by Kodaa in the Hub |
03How the control path worksLocal LAN · Ethernet
Control4 talks to the Lithernet Casambi gateway over the local network, and the gateway talks to the Bluetooth mesh. The Casambi app and its own cloud work separately and are not part of this path.
Control4
The Hub discovers every device and lists it; device drivers link to the Hub — all on the controller.
light · shade · fan · thermostat · buttonLithernet gateway
Connects to the controller over the local network — no cloud in the path.
Ethernet · two-wayCasambi network
Luminaires, switches, curtains, fans, sensors and Elements controllers.
device · group · sensor · keypadLoads and DALI gear
Lights and appliances behind DALI-capable Casambi units.
DALI Hub · per Casambi unit- Discover
The Hub reads every device, group, sensor and keypad the gateway reports and lists each one.
- Link
Add the matching device driver, set it to Linked to Hub and drag it onto its entry. Nothing to type.
- Control
A tap in Control4 goes controller → LAN → gateway → BLE mesh. State reports back the same way.
04What you need on site.8 items
05Deployment4 points
Pre-provisioned per project. Production drivers are built per project by Kodaa, licensed per project and non-transferable; the dealer sets only the gateway connection on install.
Non-transferable licence. Each project's drivers are licensed to that project only, so they cannot be reused on another site. Discovery and control work normally within the licensed project.
Local network only. Keep the gateway, controller and integration on an isolated local network, never on an internet-facing path. There is no cloud dependency in the control path.
Confirmed on site. AC control is enabled only after the appliance's element map is confirmed on site; a handful of write paths are validated during commissioning.
Add Casambi to your
next Control4 project.
Control4 DriverWorks drivers, installed in Composer Pro, licensed per project and pre-provisioned by Kodaa. Talk to us about your next project.
